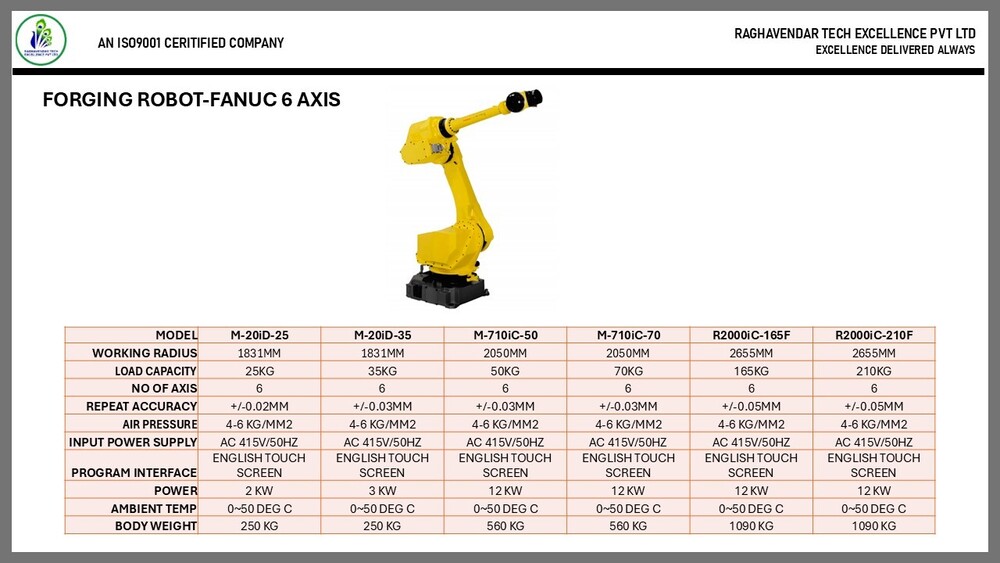

FORGING ROBOT-FANUC 6 AXIS

About FORGING ROBOT-FANUC 6 AXIS

The Series Six-Axis Forging Robot is builtfor modern forging automation, offering stable performance, high efficiency,and precise motion control. Its 6-axis structure allows complex movements,accurate positioning, and flexible handling of both small and heavy components.

Available in payload variants of 25kg, 35kg, 50kg,70kg, 165kg, and 210kg, the robot covers a wide range of forgingapplications including loading, unloading, billet handling, die lubrication,and part transfer.

With a working radius of approx. 1831to 2655 mm,high repeat accuracy ranging from +/- 0.02 mm to +/- 0.05 mm, and areliable pneumatic system (4.0-6.0 kg/cm2), this robot ensures consistentperformance in demanding environments.

It features a Chinese/English touchscreen interface,making operation easy for any forging shop. The robot enhances productivity,reduces manpower load, improves safety, and delivers uniform output duringforging operations.

Key Features

• Six-axis articulated robotic design
• Multiple payload options (25 - 210 kg)
• High repeat accuracy: +/- 0.02 mm to +/- 0.05 mm
• Working radius approx. 1831 to 2655 mm (depending on model)
• Suitable for high-temperature forging environments
• Pneumatic operation: 4.0 - 6.0 kg/cm2
• Dual-language touchscreen control
• Stable structure for long continuous operation
• Smooth motion & precise positioning
• Ideal for automated forging production lines

Applications

• Forging automation
• Loading & unloading
• Billet handling
• Manipulation during hot forging
• Die lubrication support
• Heavy industrial workshops

Unique Selling Points (USP)

• Built for heavy-duty forging environments
• Handles both light and very heavy components
• Delivers consistent accuracy even during long operations
• Reduces manpower requirement significantly
• Improves safety in high-temperature areas

Fully compatible with modern forging lineautomation
